BIP: 443
  Layer: Consensus (soft fork)
  Title: OP_CHECKCONTRACTVERIFY
  Author: Salvatore Ingala <salvatoshi@protonmail.com>
  Comments-URI: https://github.com/bitcoin/bips/wiki/Comments:BIP-0443
  Status: Draft
  Type: Standards Track
  Created: 2025-05-08
  License: BSD-3-Clause
  Post-History: 2022-11-08: https://gnusha.org/pi/bitcoindev/CAMhCMoH9uZPeAE_2tWH6rf0RndqV+ypjbNzazpFwFnLUpPsZ7g@mail.gmail.com
                2023-07-30: https://gnusha.org/pi/bitcoindev/CAMhCMoFYF+9NL1sqKfn=ma3C_mfQv7mj2fqbqO5WXVwd6vyhLw@mail.gmail.com

Abstract

This BIP proposes to add consensus support for a new tapscript opcode that enables a new type of output restrictions: OP_CHECKCONTRACTVERIFY (OP_CCV).

This opcode enables users to create UTXOs that carry a dynamic commitment to a piece of data. The commitment can be validated during the execution of the script, allowing introspection to the committed data. Moreover, a script can constrain the internal public key and taptree of one or more outputs, and possibly the committed data.

In conjunction with an opcode for vector commitmentsVector commitments are cryptographic primitives that allow to commit to a vector of values via a single short value. Hashing and concatenation trivially allow to commit to an entire vector, and later reveal all of its elements. Merkle trees are among the simplest efficient vector commitments, allowing to reveal individual elements with logarithmically-sized proofs., this allows to create and compose arbitrary state machines that define the possible future outcomes of a UTXO. The validity of a state transition depends on the conditions that can be expressed in the program (scripts in the taptree).

Copyright

This document is licensed under the 3-clause BSD license.

Motivation

The ability to constrain the future of coins beyond what is possible with presigned transactions is at the core of numerous attempts to improve bitcoin. Some of the proposed applications include:

• UTXO sharing schemes like Ark, CoinPools, Timeout Trees, etc. use various types of output restrictions in order to enable multiple parties to share the control of a UTXO, while ensuring that each participant controls their own balance.
• OP_VAULT¹ is a proposed opcode to implement a 2-step withdrawal process, enabling on-chain reactive security.
• OP_CHECKTEMPLATEVERIFY² is a long-proposed opcode to constrain a transaction to a template with a fixed set of outputs.
• Sidechains and rollups could be implemented via a UTXO encumbered with a recursive covenant, updating the sidechain state root every time it is spent.

Constructions like BitVM³ try to side-step the lack of a primitive allowing UTXOs to carry state with a clever use of Lamport Signatures, and optimistic execution of smart contracts. This comes with an extremely high cost in term of complexity, interactivity, and (potentially) in block size occupation, for some of the possible execution paths. Moreover, the design of fully trustless bridges remains elusive.

Rather than providing a construct optimized for a specific application, this BIP aims to provide a fundamental building block that is widely applicable, and common to many constructions.

Design

OP_CHECKCONTRACTVERIFY is an implementation of a new primitive that could be called state-carrying UTXOs. It allows to embed a commitment to a piece of data in a UTXO, and to validate it during the execution of the script, and carry a (possibly dynamically computed) piece of data to the new UTXOs that are produced.

We consider the program of a P2TR UTXO to be composed of an x-only public key (that we call the naked key), and a Merkle tree of scripts. If there is no data committed in the UTXO, then the naked key is the internal key as defined in BIP-341.

If the UTXO carries a commitment to a 32-byte hash (the data), the naked key is tweaked with a hash of the data. The resulting key is the taproot internal key per BIP-341.

This allows to embed a commitment to the data that can be validated during the script execution, while staying fully compatible with taproot. Notably:

• the committed data does not make the UTXO any larger;
• the keypath spend is still available to any party that possesses the private key of the naked key, as long as they have knowledge of the embedded data (or at least the data’s hash)For example, in a multi-party contract, the naked key could be an aggregate key using MuSig2; the taproot keypath would therefore allow a cooperative spend, without executing any script at all. Like for all taproot transactions, this is indeed the

  cheapest way of spending the UTXO — albeit not always possible in practice.</ref>;
* if multiple scripts are in different leaves of the taptree, only the ones that actually need to access the data have to pay a cost for it, in terms of additional witness bytes.

OP_CHECKCONTRACTVERIFY can be applied to introspect the program and data of one of the inputs of the transaction (typically, the UTXO being spent, in order to access its committed data), or one of the outputs of the transaction (in order to define its program, and possibly its committed data).

Output amounts

When checking the script of one or more outputs with OP_CHECKCONTRACTVERIFY, it is usually necessary to also check that the amount of the current input (that is, the UTXO being spent) is correctly distributed among the outputs in the expected way. Therefore, the opcode already includes an amount semantic that covers the common use cases.

There are three supported modes for the opcode when checking an output, depending on the value of the mode parameter:

• default: the residual amount of the current input must be preserved in the output (aggregate across the inputs that specify the output);
• ignore: the output amount is ignored.
• deduct: the amount of the checked output is subtracted from the amount of the current input (the residual amount is then available for further checks);

The default logic covers the common case where a UTXO’s full amount is required to be sent to a specific output.

The deduct logic allows to assign portions of the input amount to one or more outputs; the residual amount, checked with a final check using the default logic, can be used to enforce that the total amount is preserved.

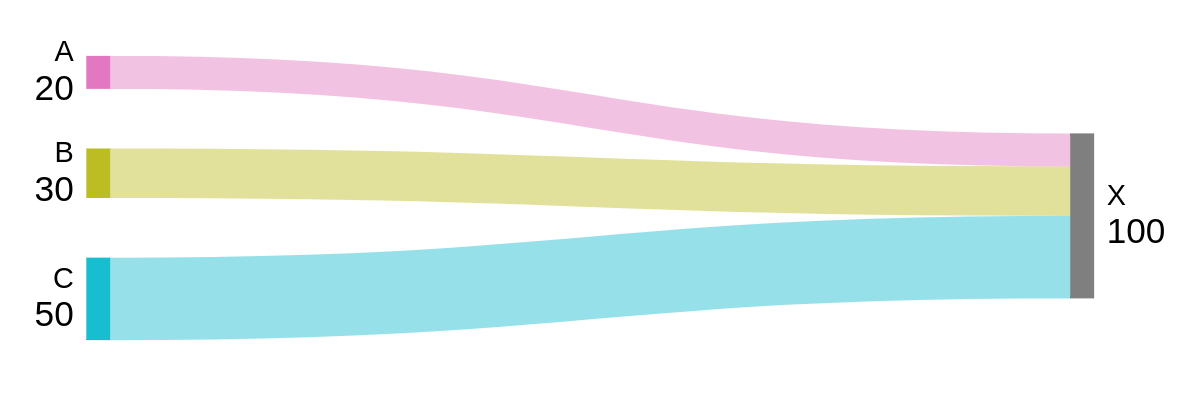

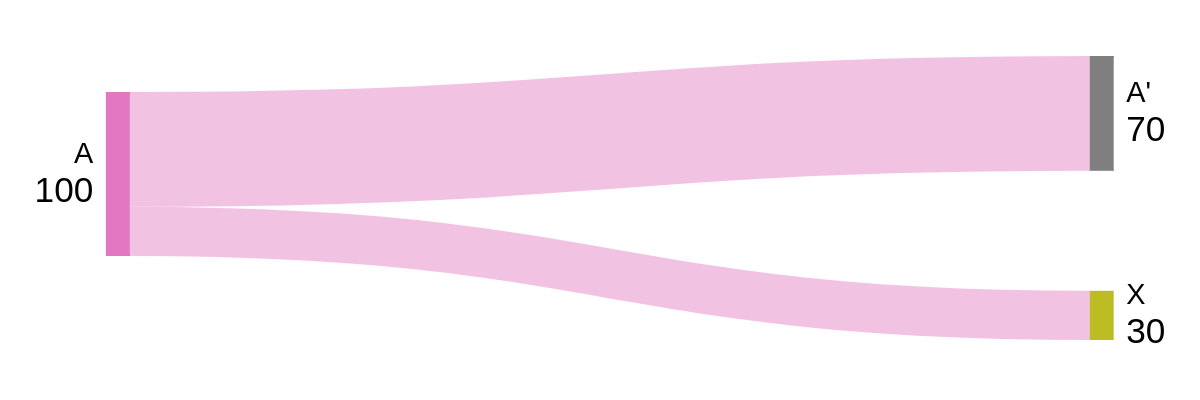

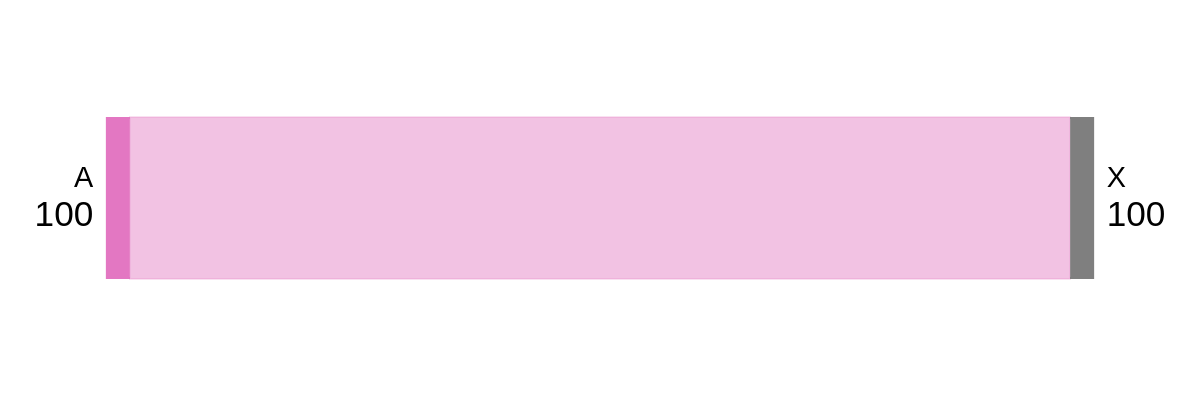

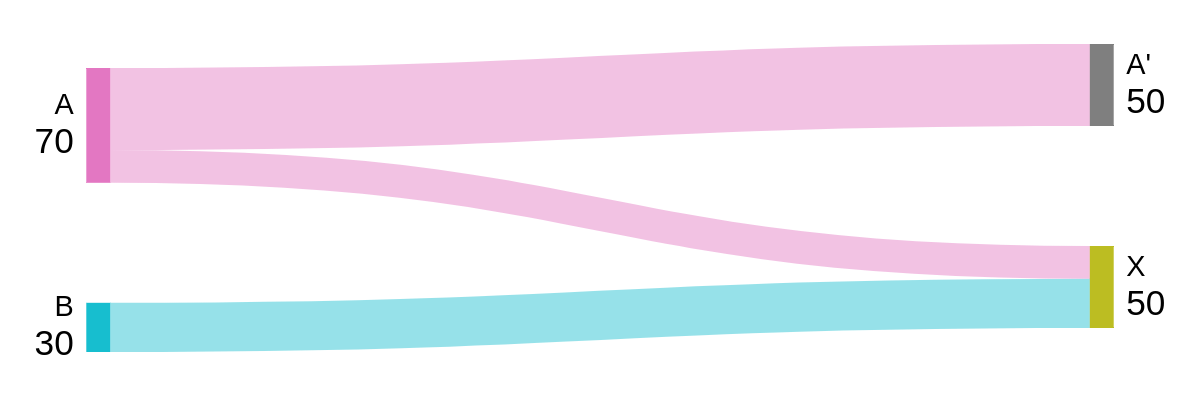

The following figures illustrate some common examples of supported use cases for the amount logic. This list is not exhaustive, as there are many more possible combinations.

Remark: validation fails if the amount of an output is checked with both the default and the deduct logic in the same transaction, or multiple times with the deduct logic. This prevents duplicate or inconsistent counting of the same amounts.

Remark: it is allowed to check for multiple inputs to check the same output with the default logic. This allows multiple inputs to aggregate (in full or in part) their amounts to the same output.

Note that the deduct semantic does not allow to check the exact amount of its output. Therefore, in contracts using a scheme similar to figure 3 or 4 above, amounts should be constrained either with a signature, or with future introspection opcodes that allow fixing the amount. In lack of that, amounts would be malleable.

Specification

The tapscript opcode OP_SUCCESS187 (0xbb) is constrained with new rules to implement OP_CHECKCONTRACTVERIFY.

When evaluating OP_CHECKCONTRACTVERIFY (OP_SUCCESS187, 0xbb), the expected format of the stack, shown bottom-to-top, is:

<data> <index> <pk> <taptree> <mode>

where:

• <mode> is a minimally encoded integer, according to one of the values defined below.
• <taptree> is the Merkle root of the taproot tree, or a minimally encoded -1, or the empty buffer.
• <pk> is called the naked key, and it's a valid 32-byte x-only public key, or a minimally encoded -1, or the empty buffer.
• <index> is a minimally encoded -1, or a minimally encoded non-negative integer.
• <data> is a buffer of arbitrary length.

In short, the semantics of the opcode with respect to the script can be summarized as follows:

Verify that the input/output with the given 'index' is a P2TR UTXO whose taproot output key is obtained from 'pk', tweaked with the hash of 'data' (if non-empty), then taptweaked with 'taptree' (if non-empty).

If the <data> is non-empty, then the additive tweak for the data is computed as:

  data_tweak = sha256(pk || data)

In the following, the current input is the input whose script is being executed.

The following value of the <mode> are defined:

• CCV_MODE_CHECK_INPUT = -1: Check an input's script; no amount check.
• CCV_MODE_CHECK_OUTPUT = 0: Check an output's script; preserve the (possibly residual) amount.
• CCV_MODE_CHECK_OUTPUT_IGNORE_AMOUNT = 1: Check an output's script; ignore amounts.
• CCV_MODE_CHECK_OUTPUT_DEDUCT_AMOUNT = 2: Check an output's script; deduct the output amount from the input's residual amount.

Any other value of the <mode> makes the opcode succeed validation immediately for the current inputThis allows to soft-fork future behavior by introducing new values for the <mode>. As the mode would always be hard-coded via a push in the script, the risk of mistakes seems negligible..

The following values of the other parameters have special meanings:

• If the <taptree> is -1, it is replaced with the Merkle root of the current input's tapscript tree. If the taptree is the empty buffer, then the taptweak is skipped.
• If the <pk> is 0, it is replaced with the NUMS x-only pubkey 0x50929b74c1a04954b78b4b6035e97a5e078a5a0f28ec96d547bfee9ace803ac0 defined in BIP-0340. If the <pk> is -1, it is replaced with the taproot internal key of the current input.
• If the <index> is -1, it is replaced with the index of the current input.
• If the <data> is the empty buffer, then there is no data tweak for the input/output being checked.

Any other value of the <taptree>, <pk>, <index> or <data> parameters is invalid, and makes the opcode immediately fail validation.

Script support for OP_CHECKCONTRACTVERIFY

The specification is divided into three parts:

• the transaction-wide initialization;
• the input initialization;
• the opcode evaluation.

The following helper function is a version of taproot_tweak_pubkey, except that a raw 32-byte data is used as the tweak.

def tweak_embed_data(pubkey, data):
    assert len(pubkey) == 32

    data_tweak = sha256(pubkey + data)

    t = int_from_bytes(data_tweak)
    if t >= SECP256K1_ORDER:
        raise ValueError
    P = lift_x(int_from_bytes(pubkey))
    if P is None:
        raise ValueError
    Q = point_add(P, point_mul(G, t))
    return 0 if has_even_y(Q) else 1, bytes_from_int(x(Q))

The taproot_tweak_pubkey from BIP341 is also used as a helper function.

The following notations are used in the pseudocode below:

• n_inputs and n_outputs are the number of inputs and outputs of the transaction, respectively;
• inputs[i] is the i-th input of the transaction;
• outputs[i] is the i-th output of the transaction;
• this_input_index, this_input_internal_key and this_input_taptree are the index,

  taproot internal key and taproot Merkle root of the current input, respectively.
* <code>P2TR(key)</code> computes the scriptPubKey of the P2TR output with the given key as the taproot output key.

Transaction-wide initialization

This is executed once for the entire transaction, before any of the transaction input's scripts are evaluated. Itinitializes three arrays that are used to keep track of the amount information of the output.

  output_min_amount = [0] * n_outputs
  output_checked_default = [False] * n_outputs
  output_checked_deduct = [False] * n_outputs

Input initialization

This is executed at the beginning of the evaluation of each input's script. It initializes the residual amount to equal the full amount of the current input.

  residual_input_amount = input[this_input_index].amount

OP_CHECKCONTRACTVERIFY evaluation

The following code is executed every time the OP_CHECKCONTRACTVERIFY opcode is encountered during the evaluation of a taproot script spend. this_input_index, this_input_internal_key and this_input_taptree are the index, taproot internal key and taproot Merkle root of the current input.

BIP341_NUMS_KEY is the x-only provably unspendable key 50929b74c1a04954b78b4b6035e97a5e078a5a0f28ec96d547bfee9ace803ac0 defined in BIP-341.

  if mode < CCV_MODE_CHECK_INPUT or mode > CCV_MODE_CHECK_OUTPUT_DEDUCT_AMOUNT:
    return success()  # undefined mode is OP_SUCCESS

  if index == -1:
    index = this_input_index

  if mode == CCV_MODE_CHECK_INPUT:
    if index < 0 or index >= n_inputs:
      return fail()  # input index out of bounds

    target_script = inputs[index].scriptPubKey
  else:
    if index < 0 or index >= n_outputs:
      return fail()  # output index out of bounds

    target_script = outputs[index].scriptPubKey

  if taptree == <-1>:
    taptree = this_input_taptree

  if pk == <0>:
    naked_key = BIP341_NUMS_KEY
  elif pk == <-1>:
    naked_key = this_input_internal_key
  elif len(pk) == 32:
    naked_key = pk
  else:
    return fail()

  # Verify the target contract data and program
  _, internal_key = tweak_embed_data(naked_key, data)

  if len(taptree) != 0:
    if len(taptree) != 32:
      return fail()

    _, final_key = taproot_tweak_pubkey(internal_key, taptree)
  else:
    final_key = internal_key

  if target_script != P2TR(final_key):
    return fail()

  # Amount checks

  if mode == CCV_MODE_CHECK_OUTPUT:
    # default amount semantic
    if output_checked_deduct[index]:
      return fail()

    output_min_amount[index] += residual_input_amount
    residual_input_amount = 0

    if outputs[index].amount < output_min_amount[index]:
      return fail()

    output_checked_default[index] = True
  elif mode == CCV_MODE_CHECK_OUTPUT_DEDUCT_AMOUNT:
    # 'deduct' amount semantic
    if residual_input_amount < outputs[index].amount:
      return fail()

    if output_checked_default[index] or output_checked_deduct[index]:
      return fail()

    residual_input_amount = residual_input_amount - outputs[index].amount
    output_checked_deduct[index] = True

  stack.pop(5)  # drop all 5 stack elements

sigops budget

TODO

Policy changes

TODO

Implementation

A reference implementation is provided as a bitcoin-core pull request.

Examples

This section documents some common script fragments that use OP_CHECKCONTRACTVERIFY for various common choices of the parameters. Depending on the use case, some of the parameters might be passed via the witness stack. In these examples, <> (empty buffer) and 0 both refer to an empty stack element.

Check data embedded in the current input:

<data=data>
<index=-1>
<pk=naked_pk>
<taptree=-1>
<mode=-1 (CCV_MODE_CHECK_INPUT)>
OP_CHECKCONTRACTVERIFY

This would be used to access the data committed in the current input. The <data> parameter, of course, would be passed via the witness stack.

Check that the input with index in_i is a specific contract with embedded input_data:

<data=input_data>
<index=in_i>
<pk=input_i_naked_pk>
<taptree=input_i_taptree>
<mode=-1 (CCV_MODE_CHECK_INPUT)>
OP_CHECKCONTRACTVERIFY

This allows introspecting the program (naked key and taptree) and data of another input of the transaction.

Check that the output with index out_i is a certain contract (pubkey and taptree) with the specified embedded <data>, preserving input amount:

<data=data>
<index=out_i>
<pk=output_naked_pk>
<taptree=output_taptree>
<mode=0 (CCV_MODE_CHECK_OUTPUT)>
OP_CHECKCONTRACTVERIFY

This allows introspecting an output's program and data, and sending the full residual amount to it. Logically, it can be thought as a state transition, moving money to a different state, but still under the control of the pre-set rules. Typically, the data would be computed based on the witness stack, while the output program would be hard-coded in Script.

Check that the output with index out_i is a P2TR with pubkey output_pk, preserving amount:

<data=<>>  # no data
<index=out_i>
<pk=output_pk>
<taptree=<>>  # no taptweak
<mode=0 (CCV_MODE_CHECK_OUTPUT)>
OP_CHECKCONTRACTVERIFY

Unlike the previous example, here there is no computation over the destination taproot public key, since both data and taptweak are omitted.

Check that the output with index out_i is a certain contract (pubkey and taptree) with the specified embedded data; don't check amount:

<data=data>
<index=out_i>
<pk=output_i_naked_pk>
<taptree=output_i_taptree>
<mode=1 (CCV_MODE_CHECK_OUTPUT_IGNORE_AMOUNT)>
OP_CHECKCONTRACTVERIFY

Remark: amounts are malleable with this check alone; therefore, it is expected that the amount is also checked with separate introspection opcodes.

Check that the amount of the current input is partially sent to the first output (that must have a certain pubkey), and all the remaining amount is sent to the second output, which has the same internal key and taptree as the current input:

<data=<>>     # no data
<index=0>
<pk=<output_0_pk>>
<taptree=<>>  # no tweak
<mode=2 (CCV_MODE_CHECK_OUTPUT_DEDUCT_AMOUNT)>
OP_CHECKCONTRACTVERIFY

<data=<>>     # no data
<index=1>
<pk=-1>
<taptree=-1>
<mode=0 (CCV_MODE_CHECK_OUTPUT)>
OP_CHECKCONTRACTVERIFY

Remark: in some applications, it might be desirable to check the exact amount of the first output with separate introspection opcodes.

Applications

TODO

Deployment

The activation mechanism, and the set of other BIPs to be concurrently deployed, are to be determined.

Backwards compatibility

OP_CHECKCONTRACTVERIFY replaces the witness v1-only opcode OP_SUCCESS187 with stricter verification semantics. Consequently, scripts using those opcodes which previously were valid will cease to be valid with this change.

Stricter verification semantics for an OP_SUCCESSx opcode are a soft fork, so existing software will be fully functional without upgrade except for mining and block validation.

Footnotes

1. ^ BIP-345
2. ^ BIP-114
3. ^ https://bitvm.org/

Acknowledgements

TODO
